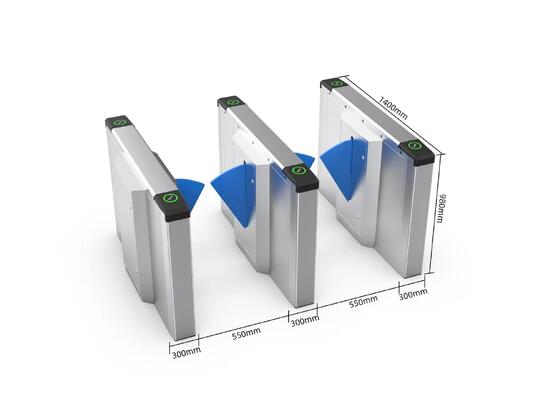

Stainless Steel SUS304 Swing Turnstiles Floor Mounted With Adjustable Gate Opening Speed
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Carton + Wooden Box |
| Delivery Period: | 7-10 working days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 50000Sets / Month |
Detail Information
Place of Origin
Shenzhen, China
Brand Name
TAIWEI
Certification
ISO9001
Model Number
TW-DC Series
Productname:
Swing Turnstiles
Operation Mode:
Bi-directional Or Uni-directional
Working Environment:
Indoor And Outdoor
Installation Type:
Floor Mounted
Emergency Mode:
Automatic Arm Open On Power Failure
Control Signal:
Dry Contact, Relay Signal
Power Supply:
AC 110V/220V, 50/60Hz
Operating Temperature:
-20°C To 60°C
Opening Speed:
30-45 Persons Per Minute
Armlength:
550mm
Weight:
Approximately 60kg
Dimensions:
1200mm X 280mm X 1000mm (L X W X H)
Accesscon Trolcompatibility:
RFID, Fingerprint, Face Recognition, Barcode Scanner
Ingressprotectionrating:
IP54
Material:
Stainless Steel
Highlight:
Stainless Steel Swing Turnstiles
,SUS304 Swing Turnstiles
,Swing Turnstiles Floor Mounted
Product Description
Stainless Steel Swing Turnstiles With Adjustable Gate Opening Speed 0.2-0.5s For Bi-Directional Or Uni-Directional Access Control
Swing Turnstiles
High-performance swing turnstiles featuring adjustable gate opening speed (0.2-0.5 seconds) for optimal pedestrian throughput and smooth operation.
Technical Specifications
| Model | HPT-YD2001-D (Single Core) / HPT-YD2001-S (Dual Core) |
| Material | Stainless Steel SUS 304 |
| Drive Voltage | 24V |
| Backup Power | Super Capacitor (12V/3A) |
| Channel Width | 550MM |
| Wings | Blue, Red/Transparent (Optional) |
| Passage Direction | Unidirectional/Bidirectional |
| Sensing Method | Infrared Beam |
| Infrared | Jetec*3 Pairs |
| Gate Opening Speed | 0.2s to 0.5s (Adjustable) |
| Passage Speed | 30-35 people/min (Normally Closed) |
| Operating Environment | -20℃ to 70℃ |
| Working Voltage | AC220V+10% |
| Core | Wing Gate Core |
| Motor | 24V DC Motor |
| Wire Pass-through Holes | Knockout Holes*4 |
| Communication Interface | Dry Contact Switch, Relay, Fire Protection Interface |
Features & Capabilities
- Passage Mode: Supports Card Swiping, Face Recognition, QR Code, Fingerprint, etc.
- Safety Features: Anti-pinch, Anti-collision, Anti-tailgating, Anti-reverse Intrusion
- Packaging: 5-Layer 5mm Double Corrugated Carton
