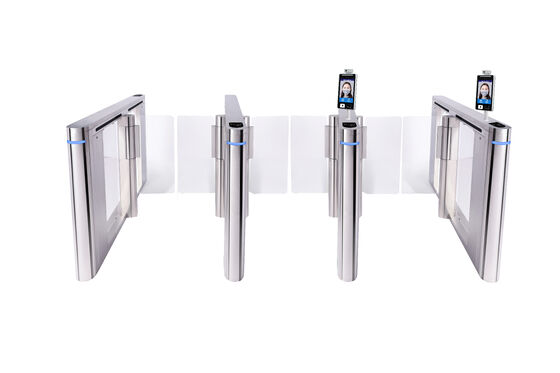

SUS304 Fast Speed Gate Turnstile Access Control Anti Pinch Floor Mounted
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Carton + Wooden Box |
| Delivery Period: | 7-10 working days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 50000Sets / Month |
Detail Information
Place of Origin
Shenzhen, China
Brand Name
TAIWEI
Certification
ISO9001
Model Number
TW-DC Series
Weight:
Approximately 80kg
Usageenvironment:
Indoor And Outdoor
Powersupply:
AC 220V/110V, 50/60Hz
Safety Features:
Anti-pinch, Emergency Stop
Operationmode:
Automatic
Gatetype:
Speed Gate
Operatingtemperature:
-20°C To 60°C
Dimensions:
1200mm (H) X 300mm (W) X 1000mm (L)
Material:
Stainless Steel
Controlsystem:
Infrared Sensor And RFID
Application:
Access Control For Offices, Airports, Metro Stations
Closingspeed:
1-2 Seconds
Opening Speed:
1-2 Seconds
Installation Type:
Floor Mounted
Product Name:
Speed Gate Turnstile
Power Supply:
AC220V,220V 60Hz,110~240 V(AC),AC220V/110V,AC110/AC220+/-10%
Warranty:
12 Months,1 Year,One Year,3years,1year Free Guaranty Service
Color:
Optional,Customized Color,Metallic Silver
Communication:
TCP IP,RS485 TCP/IP,RS232/485
Communication Interface:
RS485,TCP/IP/R485,RS485/Relay Signal
Type:
Single Core & Double Core,Fully Automatic Speed Lane Turnstile,Fully Automatic,speed Gates Manual Gate Arm Barrier
Dimension:
1200*280*980(mm),1400 * 280 * 980 (mm),1400 X300 X1000mm,L1200 X W280 X H980mm,1400*250*991mm
Housing Material:
304 Stainless Steel,SUS304
Motor:
Servo Drive,DC Brushless Motor,0.5NM/24V
Size:
1400*180*960mm,L 1400*W200*H1000mm,1400x115x1050mm
Certification:
CE/ISO9001/ISO14001,CE RoHS FCC,ISO,CE
Working Environment:
Shed,Indoors Or Outdoors With Shed,Tent Over) -10 ~70
Working Temperature:
-35℃ ~ 60℃,-30°C~+70°C,-15~75 °C
Arm Length:
500-900 Mm,<=435mm,550mm
Function:
Baffle,barcode Scanner,rfid Card,RFID Reading,fingerprint Support
Highlight:
Fast Speed Gate Turnstile
,Speed Gate Turnstile Access Control
,SUS304 Speed Gate Access Control
Product Description
Fast Speed Gates with Customizable Channel Width and Rapid Opening Speed
Product Overview
High-performance speed gates designed for efficient pedestrian flow control with customizable channel widths and rapid gate opening speeds suitable for various commercial and industrial environments.
| Model | HPT-YD6001-D (Single Core) / HPT-YD6001-S (Dual Core) |
|---|---|
| Dimensions | Single Core: 1400*160 (241)*980mm Dual Core: 1400*160 (322)*980mm |
| Material | Stainless Steel SUS304 |
| Channel Width | 600-1000mm (Customizable) |
Technical Specifications
| Drive Voltage | 24V DC |
|---|---|
| Backup Power Supply | Super Capacitor (12V/3A) |
| Swing Arm Material | 8mm Thick Acrylic |
| Passage Direction | Unidirectional / Bidirectional |
| Induction Method | Infrared Beam |
| Infrared Sensor | J-Tek, 5 Pairs |
| Gate Opening Speed | 0.2s to 0.5s (Adjustable) |
| Passage Speed | 30-35 Persons/Minute (Normally Closed Mode) |
| Operating Environment | -20℃ to 70℃ |
| Working Voltage | AC220V+10% |
Construction & Movement
| Top Cover Thickness | 1.2mm |
|---|---|
| Body Thickness | 1.0mm |
| Movement System | Brushless Speed Gate Movement with Encoder |
| Motor | 24V DC Motor |
| Cable Entry Holes | 4 Knockout Holes |
Features stable operation and low noise performance for enhanced user experience.
Access Control & Safety Features
Communication Interfaces:
Dry Contact Switch, Relay, Fire Protection Interface
Supported Access Modes:
- Card Swiping
- Face Recognition
- QR Code
- Fingerprint
Safety Functions:
- Fire Linkage
- Anti-Pinch
- Anti-Collision
- Anti-Tailgating
- Anti-Reverse Intrusion
Packaging
5-Layer 5mm Double-Wall Carton for secure transportation and storage.
